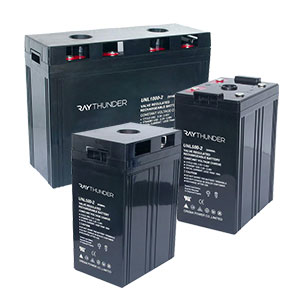

AGM Battery NPL Series
Features&Benefits
Special grid alloy and high purity raw material ensures less gassing and less self-discharging
Grid refining technology and the thicker plates are used to extend the battery standby life and reduce the plate grid corrosion speed
Lower acid density, excess of electrolyte and larger distance between plates keeps battery at a low temperature and slows down plate grid corrosion rate
Using oxygen recombination technology: maintenance-free
ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
Unique vent valve design: controls water loss, prevents air and sparks from going inside
Special grid alloy and high purity raw material ensures less gassing and less self-discharging
Grid refining technology and the thicker plates are used to extend the battery standby life and reduce the plate grid corrosion speed
Lower acid density, excess of electrolyte and larger distance between plates keeps battery at a low temperature and slows down plate grid corrosion rate
Using oxygen recombination technology: maintenance-free
ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)
Unique vent valve design: controls water loss, prevents air and sparks from going inside
Applications
Communication equipment, Telecommunication control equipment; Emergency lighting systems; Electric power systems; Power station; Nuclear power station; Solar powered and wind powered systems; Load leveling and storage equipment; Marine equipment; Power generation plants; Alarm systems; Uninterruptible power supplies and stand-by power for computers; Medical equipment; Fire and security systems; Control equipment; Stand-by electric power.
Communication equipment, Telecommunication control equipment; Emergency lighting systems; Electric power systems; Power station; Nuclear power station; Solar powered and wind powered systems; Load leveling and storage equipment; Marine equipment; Power generation plants; Alarm systems; Uninterruptible power supplies and stand-by power for computers; Medical equipment; Fire and security systems; Control equipment; Stand-by electric power.
| 电池型号Battery Type | 额定电压 Nominal Voltage (V) | 标称容量10h Rate Capacity (Ah) | 尺寸 Dimension(±1mm) | 重量 Weight | 端子类型 Terminal Type | ||||||||
| Length(长) | Width(宽) | Height(高) | Total Height （总高） | (approx) kg | (approx) pound | ||||||||
| mm | in | mm | in | mm | in | mm | in | ||||||
| NPL50-2 | 2 | 50 | 160 | 6.3 | 49 | 1.93 | 166 | 6.34 | 166 | 6.34 | 3 | 6.61 | F13 |
| NPL100-2 | 2 | 100 | 171 | 6.73 | 72 | 2.83 | 206 | 8.11 | 211 | 8.31 | 6.3 | 13.9 | F10 |
| NPL150-2 | 2 | 150 | 172 | 6.77 | 102 | 4.02 | 205 | 8.07 | 227 | 8.94 | 8.1 | 17.9 | F10 |
| NPL200-2 | 2 | 200 | 173 | 6.81 | 111 | 4.37 | 330 | 13 | 364 | 14.3 | 13.5 | 29.8 | F10 |
| NPL250-2 | 2 | 250 | 171 | 6.73 | 151 | 5.94 | 330 | 13 | 364 | 14.3 | 17.0 | 37.5 | F10 |
| NPL300-2 | 2 | 300 | 171 | 6.73 | 151 | 5.94 | 330 | 13 | 364 | 14.3 | 18.5 | 40.8 | F10 |
| NPL350-2 | 2 | 350 | 171 | 6.73 | 151 | 5.94 | 330 | 13 | 364 | 14.3 | 21 | 46.3 | F10 |
| NPL400-2 | 2 | 400 | 210 | 8.27 | 176 | 6.93 | 330 | 13 | 367 | 14.5 | 25.5 | 56.2 | F10 |
| NPL450-2 | 2 | 450 | 210 | 8.27 | 176 | 6.93 | 330 | 13 | 367 | 14.5 | 28 | 61.7 | F10 |
| NPL500-2 | 2 | 500 | 241 | 9.49 | 175 | 6.89 | 330 | 13 | 365 | 14.4 | 32 | 70.5 | F10 |
| NPL600-2 | 2 | 600 | 302 | 11.9 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 37 | 81.5 | F10 |
| NPL800-2 | 2 | 800 | 410 | 16.1 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 52 | 114.6 | F10 |
| NPL1000-2 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 61 | 134.4 | F10 |
| NPL1200-2 | 2 | 1200 | 475 | 18.7 | 175 | 6.89 | 330 | 13 | 367 | 14.5 | 71 | 156.5 | F10 |
| NPL1500-2 | 2 | 1500 | 400 | 15.8 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | 92 | 202.8 | F10 |
| NPL2000-2 | 2 | 2000 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | 119 | 262.3 | F10 |
| NPL2500-2 | 2 | 2500 | 490 | 19.3 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | 140 | 308.6 | F10 |
| NPL3000-2 | 2 | 3000 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | 184 | 405.5 | F10 |
| NPL3500-2 | 2 | 3500 | 710 | 28 | 350 | 13.8 | 345 | 13.6 | 382 | 15 | 205 | 451.8 | F10 |
